Port Kembla

Information

ID: 10081
IGS type code: ptkl
Latitude: -34.475544°
Longitude: 150.913699°
Ellipsoidal Height: 34.436 m
Ellipsoidal Height Epoch: 2023.0000
Reflector Height: 13.941 m
Provider: Geoscience Australia
Alternative Providers:
SONEL Link: ptkl
NGL Link:
GNSS Receiver
Mask used

Plot of daily data

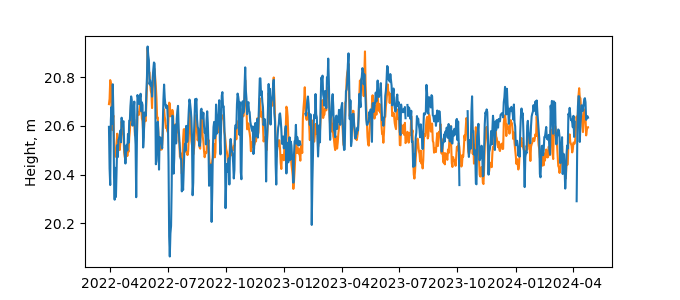

Plot of daily data, GNSS-IR data in blue, tide gauge in orange
Blue: GNSS-IR Data, Orange: Nearby tide gauge data

Inventory

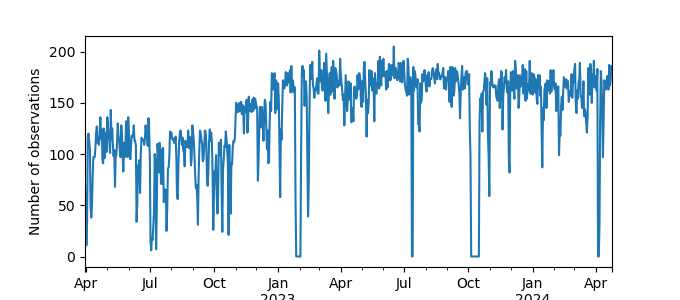

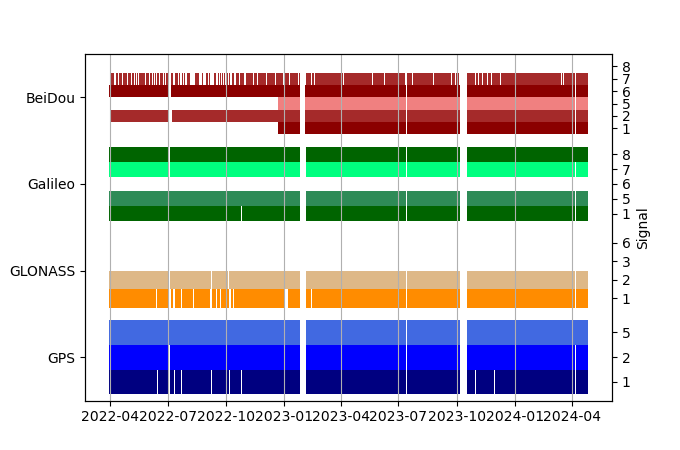

Plot of inventory, showing constellations and frequencies available over timePlot of count of number of observations per day
