Helgoland Binnenhafen

Information

ID: 10491
IGS type code: HEBI00DEU
Latitude: 54.178899°
Longitude: 7.889904°
Ellipsoidal Height: 46.737 m
Ellipsoidal Height Epoch: 2025.0000
Reflector Height: 7.694 m
Provider: BAFG
Alternative Providers:
SONEL Link: HEBI00DEU
NGL Link:
GNSS Receiver
Mask used

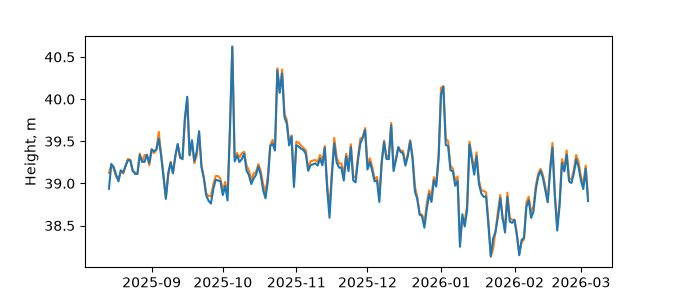

Plot of daily data

Plot of daily data, GNSS-IR data in blue, tide gauge in orange
Blue: GNSS-IR Data, Orange: Nearby tide gauge data

Inventory

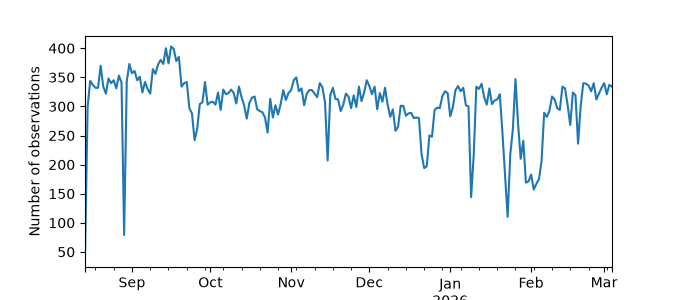

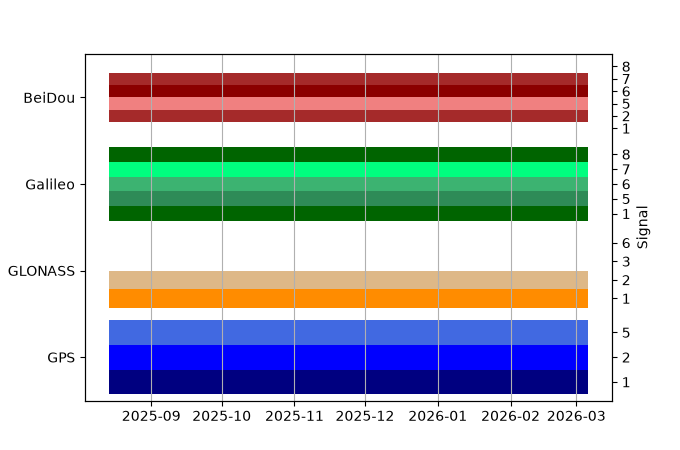

Plot of inventory, showing constellations and frequencies available over timePlot of count of number of observations per day
