Revised Local Reference (RLR) Diagram for ARENA COVE, CALIFORNIA

Station ID: 2125

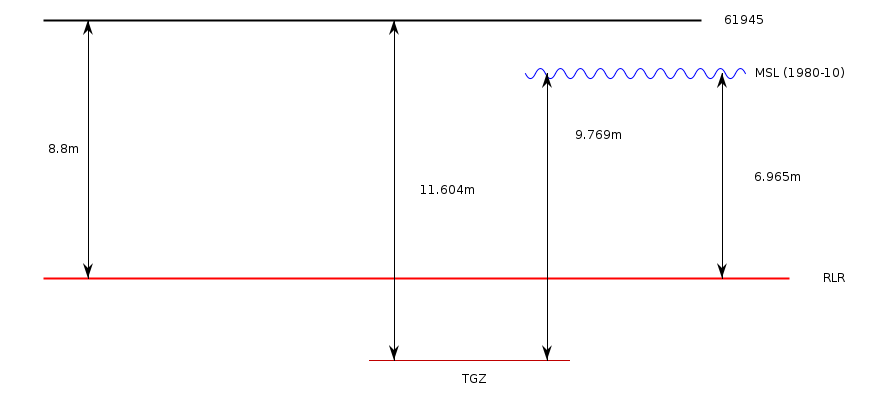

RLR diagram based on the information in the datum section below

If the image above appears blurry, or you would like to see a larger image, please view the full-sized image of the RLR diagram.

Datum information

Subtract 2.804m from all data values to refer to RLR
RLR is 8.800m below primary benchmark 61945
