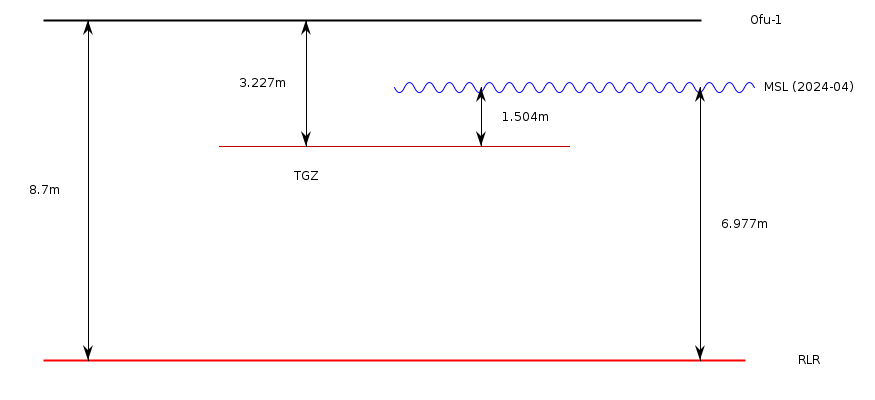

Revised Local Reference (RLR) Diagram for OFU

Station ID: 2507

If the image above appears blurry, or you would like to see a larger image, please view the full-sized image of the RLR diagram.

Add 5.473m to all data values to refer to RLR
RLR is 8.700m below primary benchmark Ofu-1
