Revised Local Reference (RLR) Diagram for LA CORUÑA III

Station ID: 1808

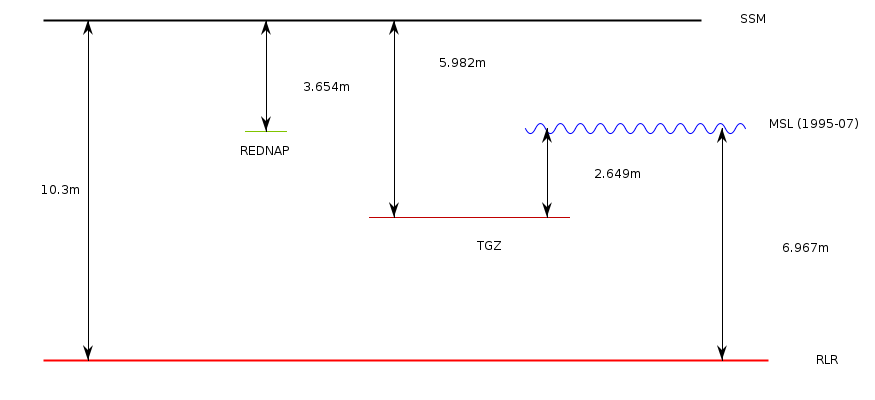

RLR diagram based on the information in the datum section below

If the image above appears blurry, or you would like to see a larger image, please view the full-sized image of the RLR diagram.

Datum information

Add 4.318m to all data values to refer to RLR
RLR is 10.300m below primary benchmark SSM

Ellipsoidal information from SONEL (explanation)

GNSSSolutionHeightVelocityEpochGNSS StartGNSS EndDistance
ACORJPL1447.499 ± 0.004-2.15 ± 0.192020.00001998-12-112023-03-221105
ACORNGL1447.496 ± 0.005-2.48 ± 0.372020.00001998-12-112023-03-221105
ACORGT347.498 ± 0.006-1.56 ± 0.302020.00001998-12-112023-03-221105
ACORULR7a47.501 ± 0.007-2.05 ± 0.222020.00001998-12-112023-03-221105
