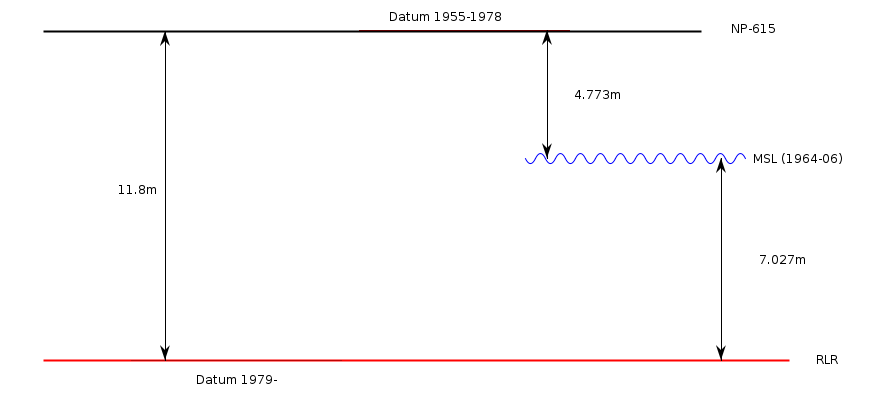

Revised Local Reference (RLR) Diagram for LA CORUÑA II

Station ID: 763

RLR diagram based on the information in the datum section below

If the image above appears blurry, or you would like to see a larger image, please view the full-sized image of the RLR diagram.

Datum information

Add 11.800m to data values 1955-1978 to refer to RLR
Add 0.000m to data values 1979 onwards to refer to RLR
RLR is 11.800m below primary benchmark NP-615

Ellipsoidal information from SONEL (explanation)

GNSSSolutionHeightVelocityEpochGNSS StartGNSS EndDistance
ACORGT347.498 ± 0.006-1.56 ± 0.302020.00001998-12-112023-03-226
ACORJPL1447.499 ± 0.004-2.15 ± 0.192020.00001998-12-112023-03-226
ACORULR7a47.501 ± 0.007-2.05 ± 0.222020.00001998-12-112023-03-226
ACORNGL1447.496 ± 0.005-2.48 ± 0.372020.00001998-12-112023-03-226
